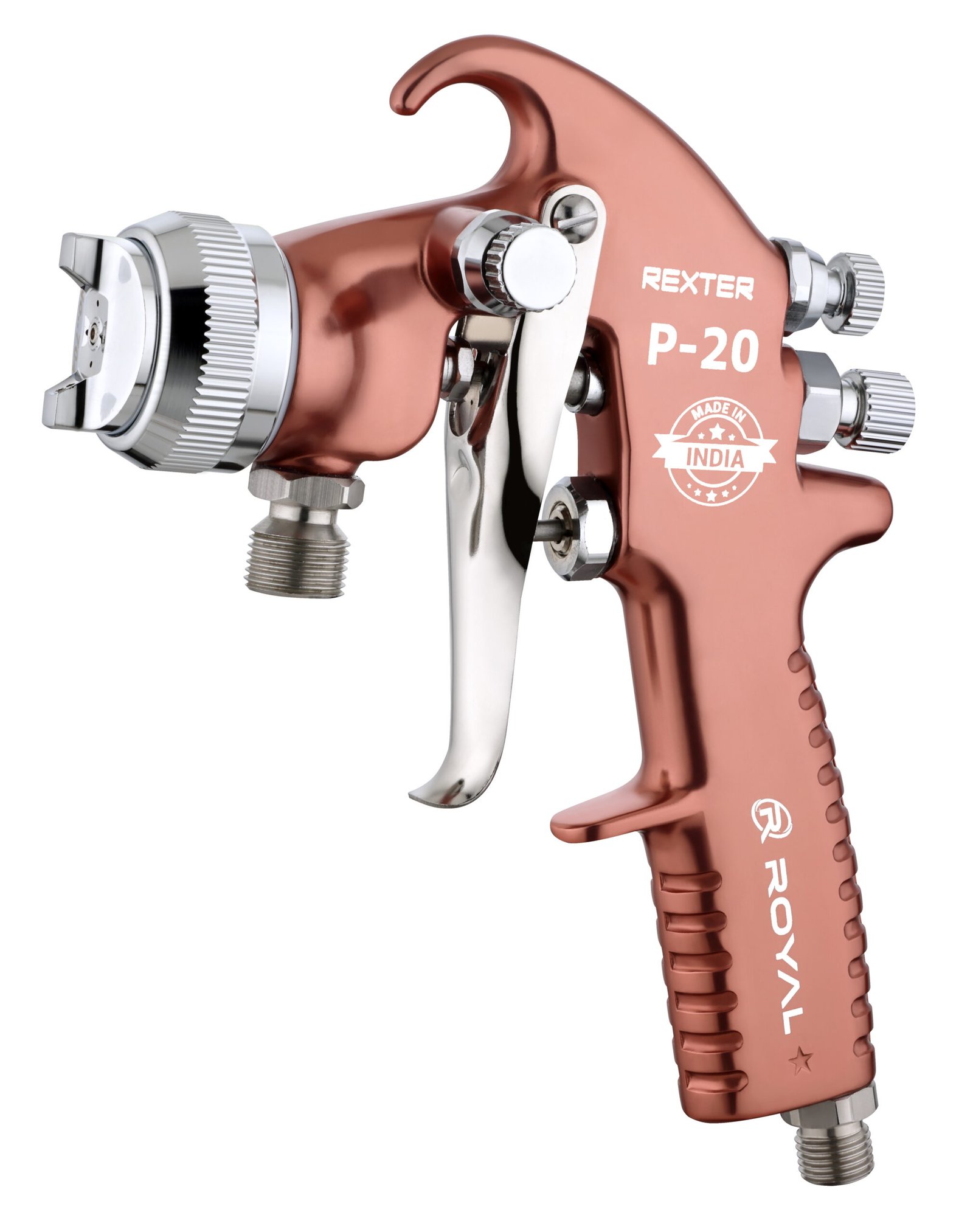

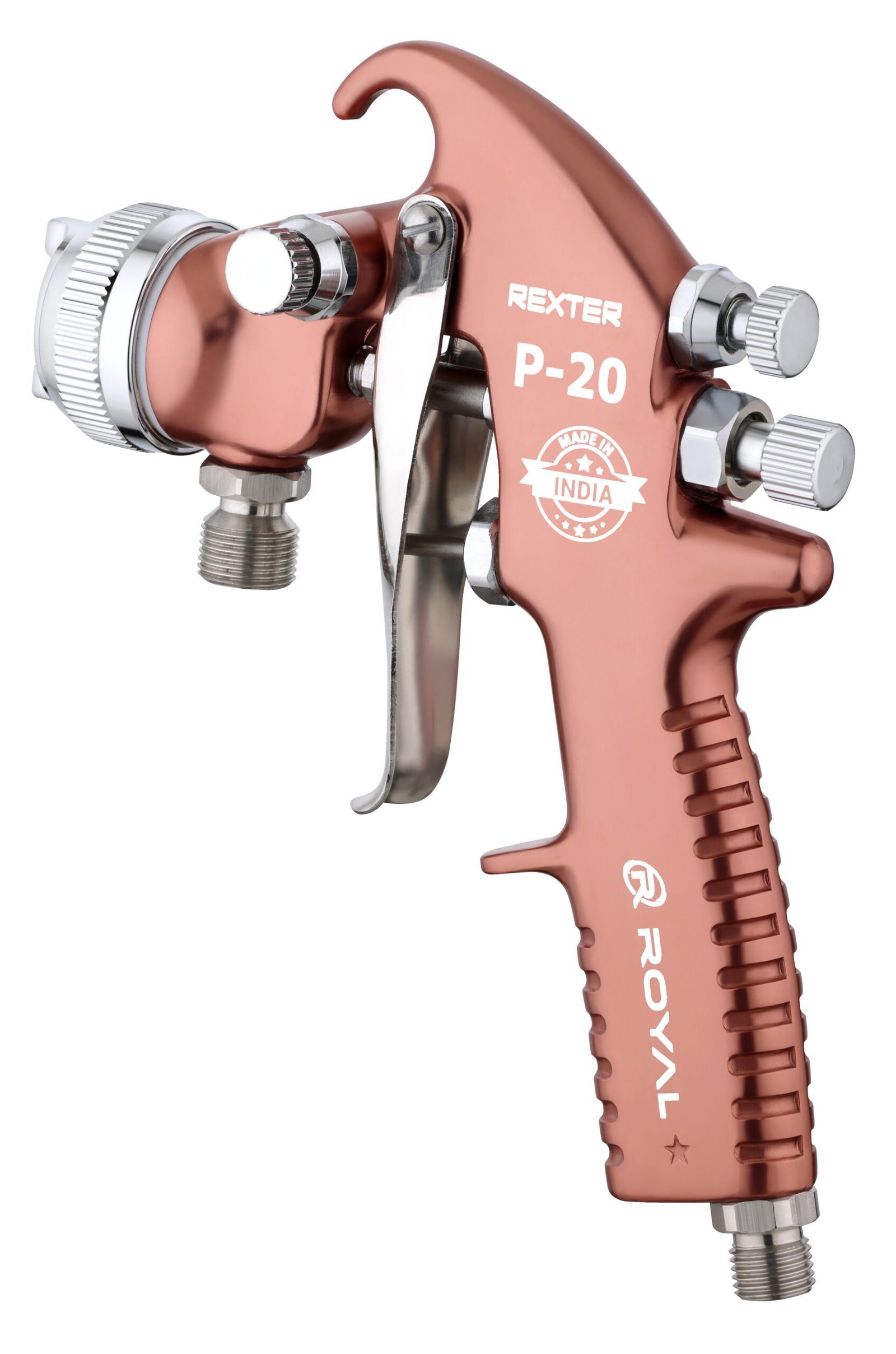

PRESSURE FEED SPRAY GUN ( P-20 )

This pressure feed gun is designed for production line application where painting operation can continue for longer time duration and quality of finish is utmost important.

Category:
Enquiry NowSpecification

Description

FEATURES

  •   Forged aluminum anodized gun body for long life
  •   Well balanced and light weight spray gun
  •   High volume performance air cap
  •   Ergonomic gun handle provides a comfortable grip
  •   Easy adjustment for precise control of fluid output and atomizing air
  •   The perfect gun for all industrial spray applications with forged aluminium gun body and removable body baffle for a longer working life.

Additional information

Gun Body

Forged Aluminium Body ( Anodized Coated )
STD. Nozzle & Needle Size

1.4, 1.8 ( Material S.S. )
Available Nozzle & Needle Size

1.0, 1.2, 1.3, 1.4, 1.6, 1.8, 2.0, 2.5 ( Material S.S. )
Air Cap

Forged Aluminium / Brass
Air Inlet Pressure Bar (psi) recommended

3 bar (45psi)
Air Inlet Connection

¼” BSP
Trigger & Air Nipple

S.S. Material
Weight of spray gun without cup

540 grams
Fluid Inlet connection

3/8” BSP
